3 Sets Small Flat Magnetic Flight Stands

Name: 3 Sets Small Flat Magnetic Flight Stands
Brand: Multi Vendor
SKU: MBFSSMFs3
Price: 16.99 USD
Availability: InStock

$16.99 USD

Sale Sold out

Height Short Medium

Product variants

Quantity

Compatibility

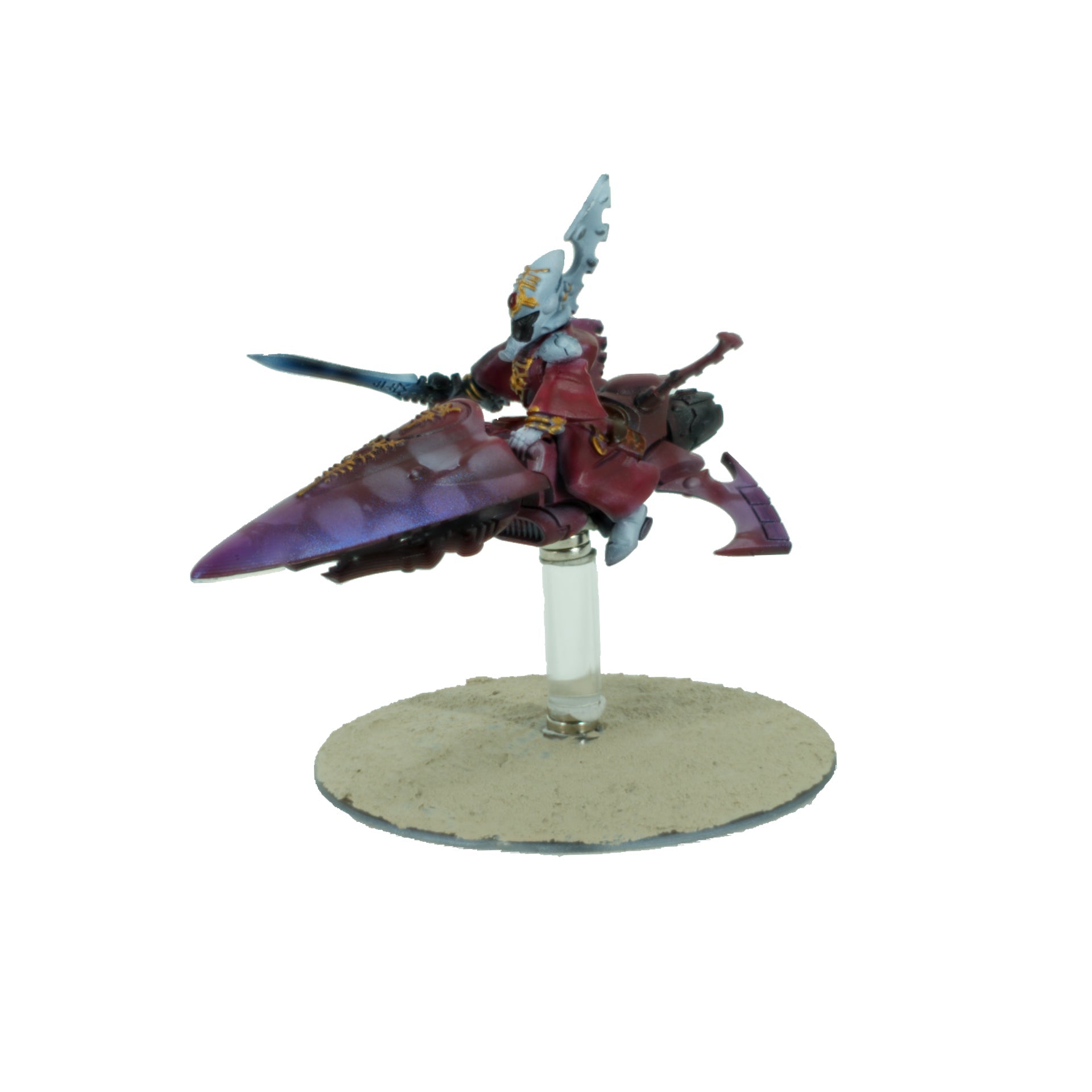

Warhammer 40k models that work well on this kit:

Custodes Vertus Praetor
Eldar Windrider Jetbikes
Eldar Shining Spears

Sturdy, magnetic, and collapsable, these magnetic flight stands are made to help you transport and play with your models on the tabletop with their flight stands intact.

These are skimmer stands that won't snap in half for no reason.
With enough magnets to magnetize the top and bottom of the flight stands, you can collapse the whole setup flat and stow the model separately,.

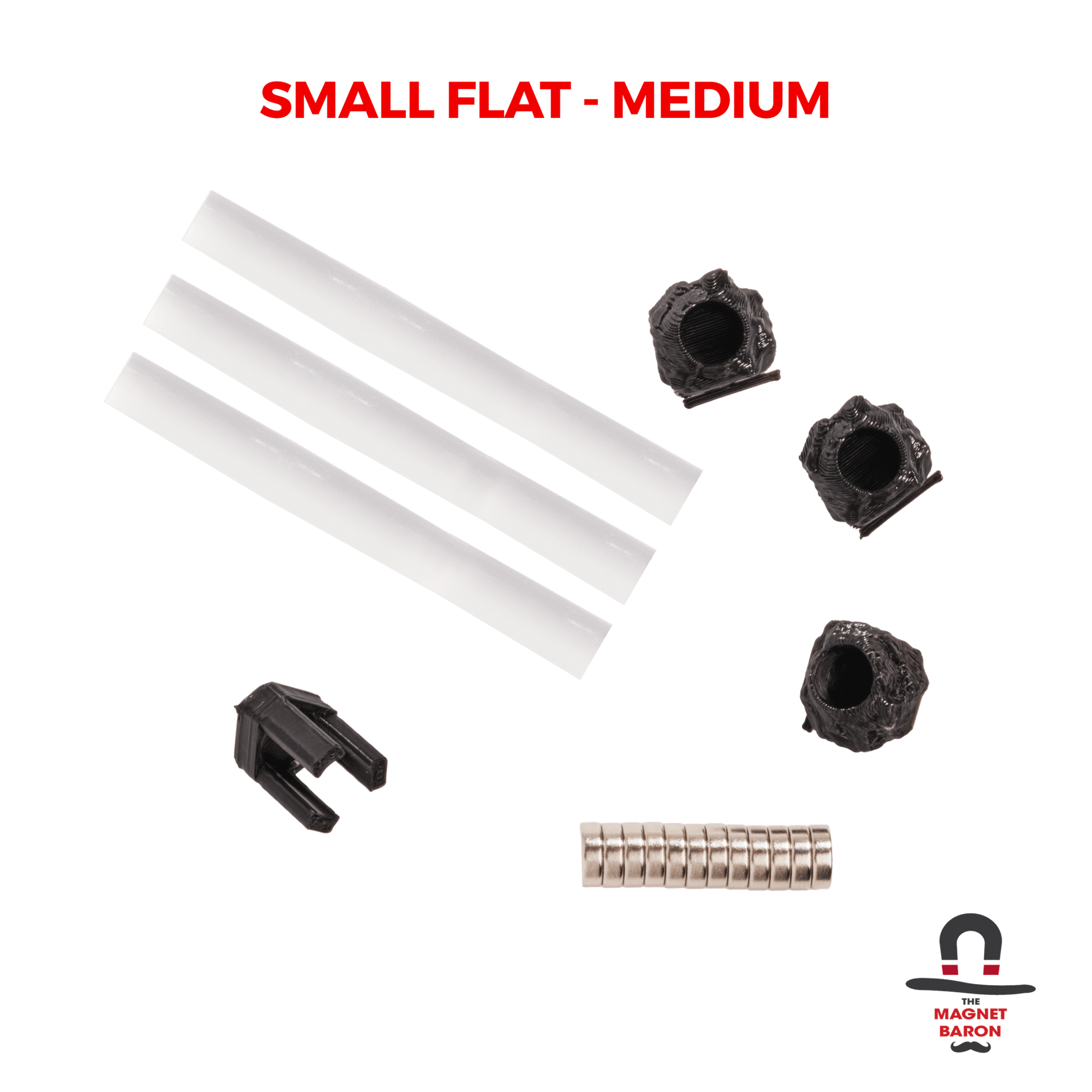

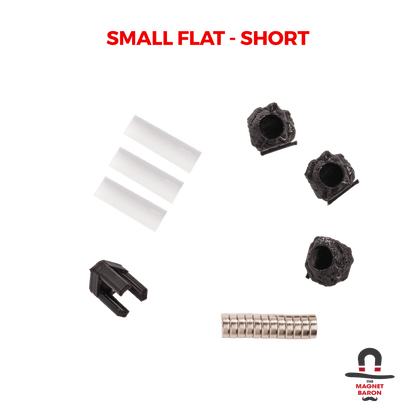

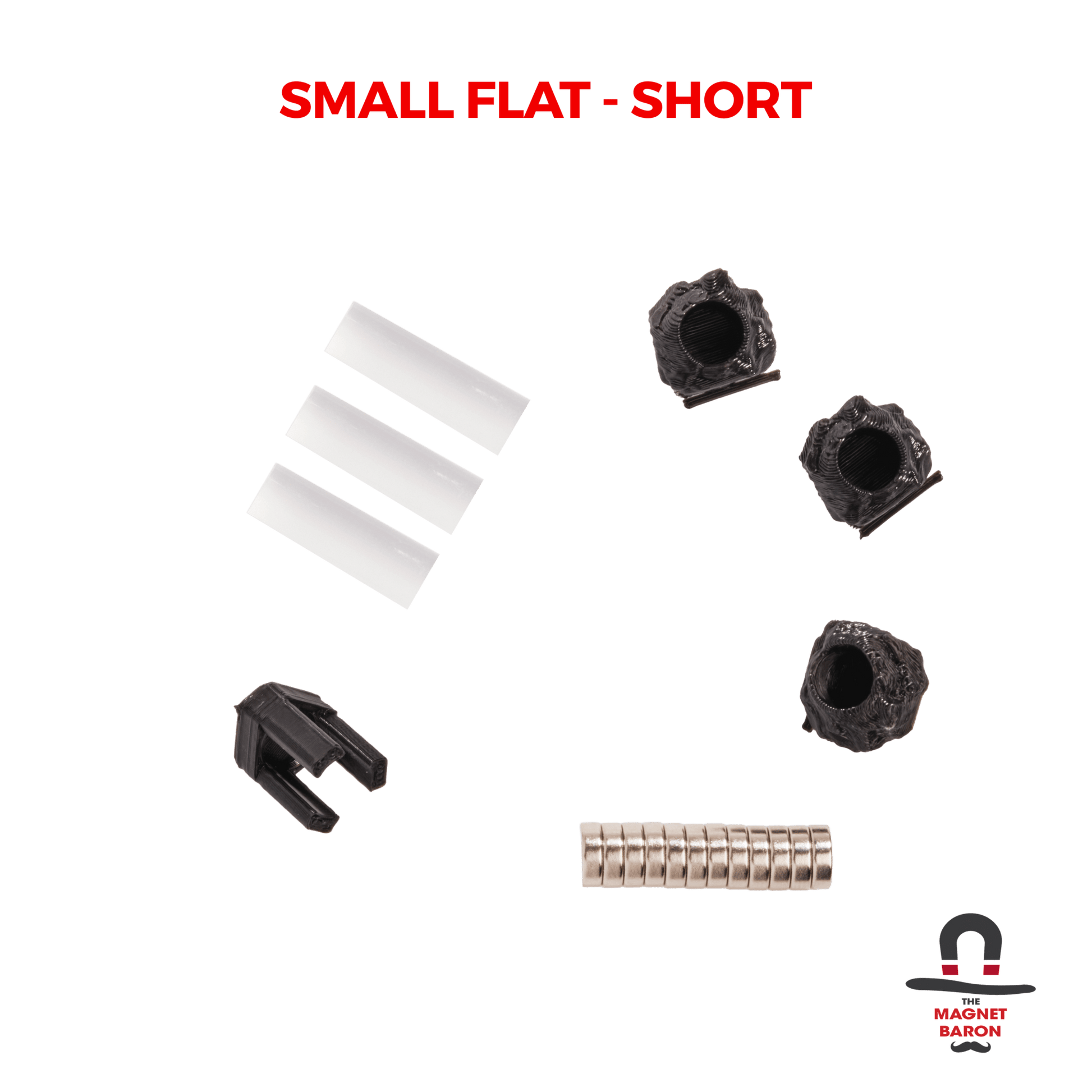

Kit Contents

Item	Dimensions
Assembled Height	Short: 25mm, Medium 60mm
3 Acrylic Rods(Undrilled)	6mm (1/4") Diameter x Short 15mm, Medium 50mm, or Tall 75mm
12 Disc Magnets	6mm x 2mm (1/4" x 1/16")
3 Rock Anchors	Small 6mm Inner Diameter
1 Flight Stand Guide	Small

Assembly Instructions

This is the full kit and parts you will need to use the magnetic flying stands. From left to right: Artificial rock/magnet holder, magnet alignment tool, 4x disk magnets (red and blue indicating polarity, try using the Magnicator), one clear acrylic rod. You will need to supply one base and a model to magnetize.

Step 1: Glue the artificial rock to the base. Glue one disk magnet inside the artificial rock. Please note the polarity! In this illustration, we are using "red up" polarity.

Step 2: Proceed from left to right:

A: Insert one disk magnet into the magnet alignment tool. Pay attention to polarity! We are again using "red up" polarity. Apply glue to the bottom of the acrylic rod. (See detail picture following.)
B: Insert the acrylic rod into the magnet alignment tool and glue it to the magnet.
C: Once the glue has set, remove the acrylic rod and disk magnet from the magnet alignment tool. You can use a pin, paper clip (shown), or other tool to help remove the pieces from the tool. There is a hole through the center of the tool to facilitate this.
D: Rotate the acrylic rod & magnet such that the empty side is again facing the magnet alignment tool.
E: Insert another disk magnet into the alignment tool and pay attention to polarity. Using "red up" polarity again allows you to use the rod & magnet assembly in either orientation.
Perform steps A through C again.

Step 2 (detail): When inserting the disk magnet into the magnet alignment tool, it will recess slightly into the base of the tool. The point where the rod and magnet touch should not be touching the tool, so hopefully no glue will cause the tool to be glued to either piece. You may apply some light force to bend the "fingers" of the tool to help remove the parts from the magnet alignment tool.

Flat Instructions Model

Step 3: Turn your model over, and glue the fourth disk magnet to the middle of the model, approximately under the center of gravity. Pay attention to the polarity again! Using "red up" polarity here allows the model to be attracted to either end of the acrylic rod & magnet assembly.

Flat Flight Stand Instructions Final

Final: This is a completed flight stand magnetization kit. You can see how the care in tracking the magnet polarity has allowed the parts to come together. From the top to the bottom, the polarity of the four magnets are Blue-Red-Blue-Red to Red-Blue-Red-Blue.
