Super Magnets
(Diameter/Width across the top, Height of the magnet down the side)
Below the Disc magnet chart is a chart of ring magnets. Height
(Diameter x Height +/-0.1mm)
|
|
0.5mm | 1mm | 2mm | 3mm | Misc | |

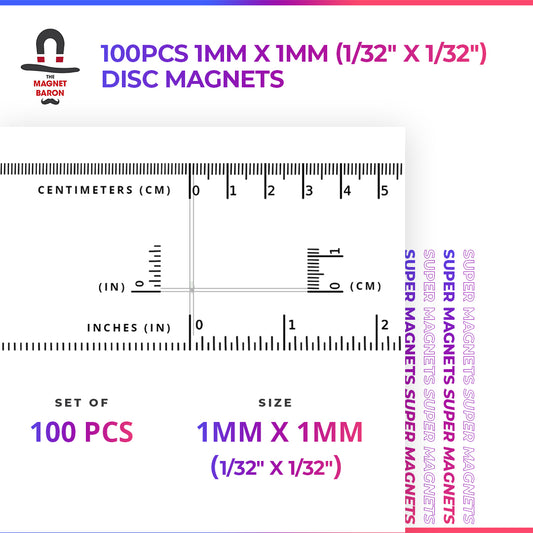

| 1mm | 1.0x0.5mm | 1.0x1.0mm | ------------ | ------------ | ------------ | |

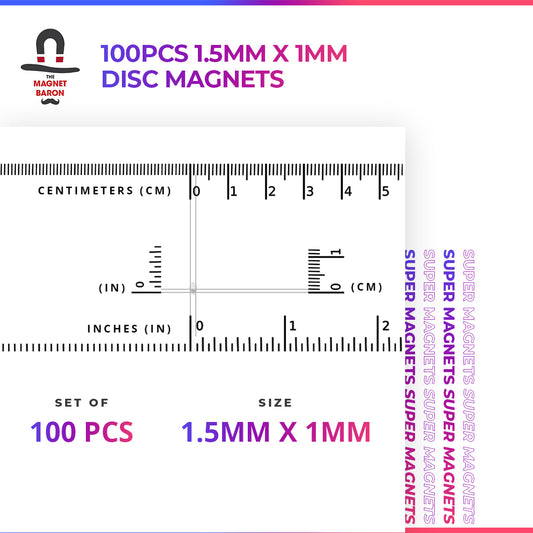

| 1.5mm | 1.5x0.5mm | 1.5x1.0mm | ------------ | ------------ | ------------ | |

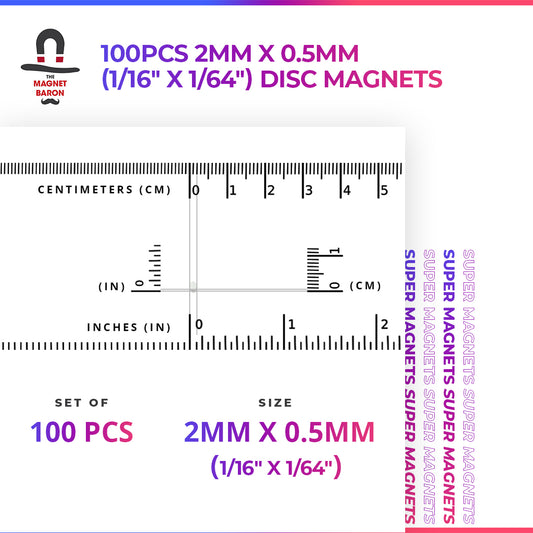

| 2mm |
2.0x0.5mm |

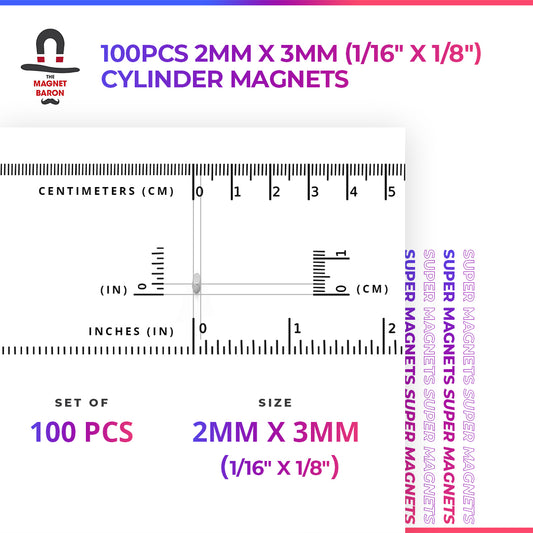

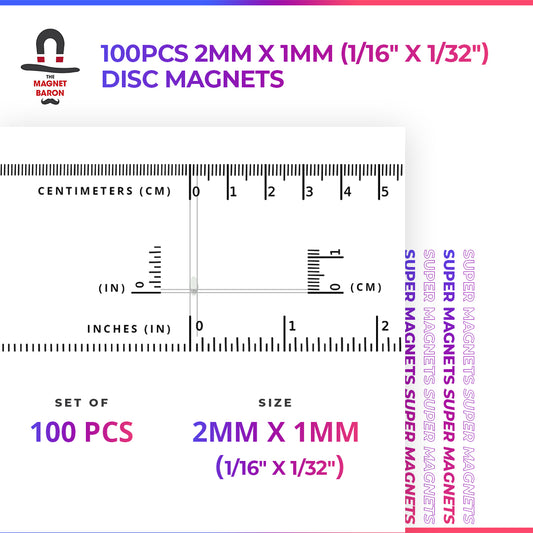

2.0x1.0mm | 2.0x2.0mm | 2.0x3.0mm | ----------- | |

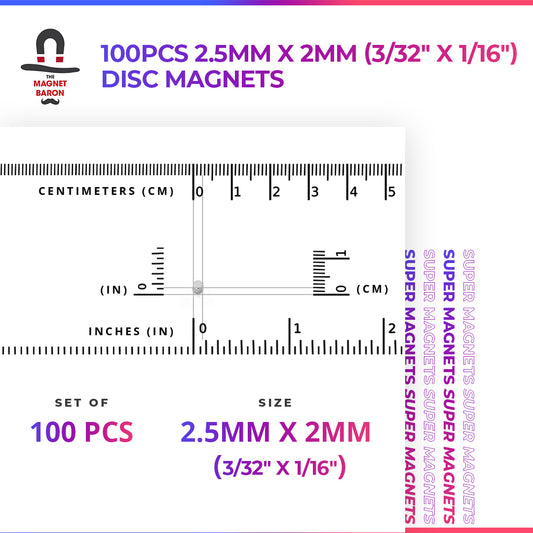

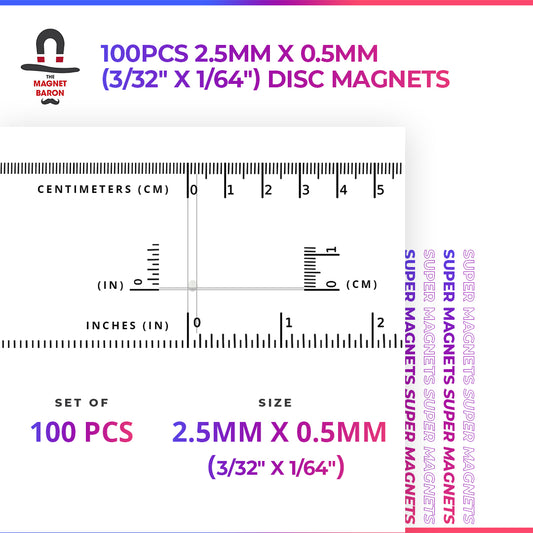

| 2.5mm | 2.5x0.5mm | 2.5x1.0mm | 2.5x2.0mm | 2.5x3.0mm | ----------- | |

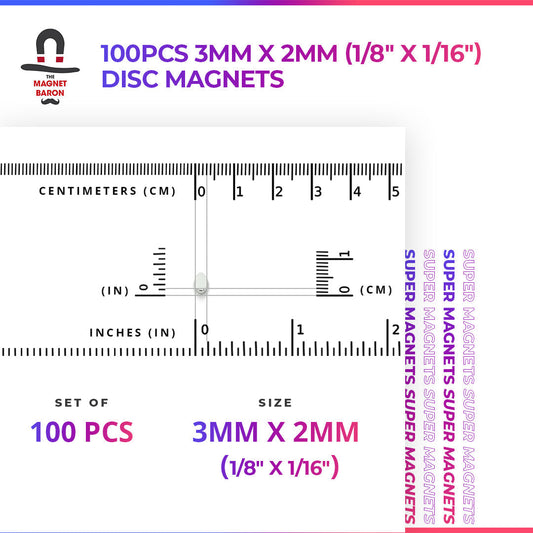

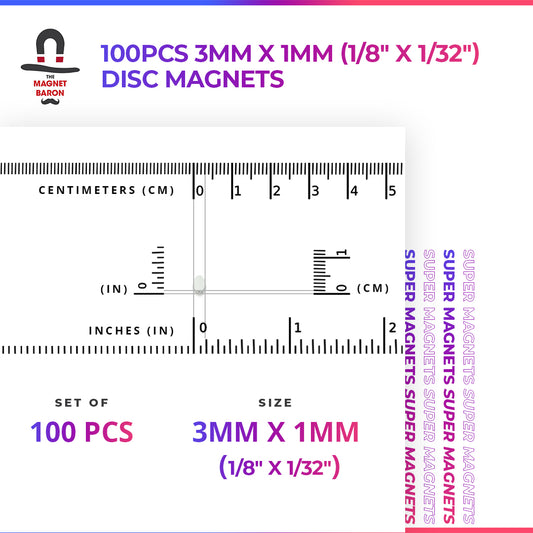

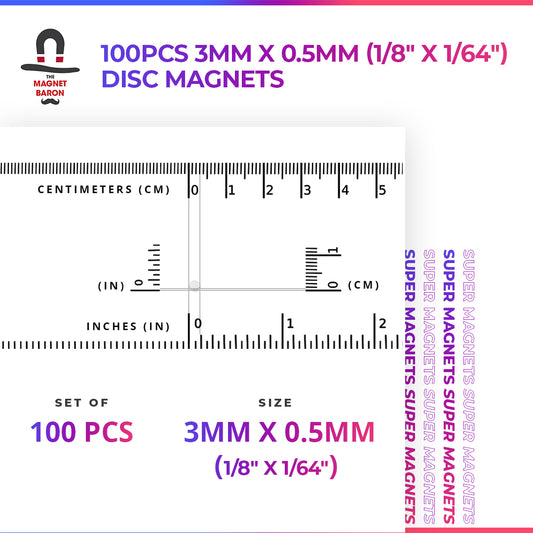

| 3mm | 3.0x0.5mm | 3.0x1.0mm | 3.0x2.0mm | 3.0x3.0mm | 3.0x4.0mm | 3.0x6.0mm |
| 4mm | ------------ | 4.0x1.0mm | 4.0x2.0mm | 4.0x3.0mm | 4.0x3.5mm | 4.0x5.0mm |
| 5mm | ------------ | 5.0x1.0mm | 5.0x2.0mm | 5.0x3.0mm | ------------ | |
| 6mm | ------------ | 6.0x1.0mm | 6.0x2.0mm | 6.0x3.0mm |
6.0x3.5mm |
|
| 8mm | ------------ | 8.0x1.0mm | 8.0x2.0mm | 8.0x3.0mm | 8.0x3.5mm | |
| 10mm | ------------ | 10.x1.0mm | 10.x2.0mm | 10.x3.0mm | 10.x10.mm | |
| 12mm | ------------ | ------------ | 12.x2.0mm | 12.x3.0mm | ------------ | |
| 14mm | ------------ | ------------ | 14.x2.0mm | 14.x3.0mm | ------------ | |
| 20mm | ------------ | ------------ | 20x-2.0mm | 20.x3.0mm | ------------ | |
| 25mm | ------------ | ------------ | 25.0x2.0mm | 25.x3.0mm | ------------ |
| Ring Magnet | Height |
| Diameter | 3.0mm |
| 6mm | 6.0x3.0mm |
| 8mm | 8.0-3.0mm |
| 10mm | 10.0x3.0mm |
| 12mm | 12.0x3.0mm |
| 20mm | 20.0x3.0mm |
